ATLEX S

ATLEX-S-Series-Laser is a very compact UV-light source designed for low- and mid-range duty cycle S Applications

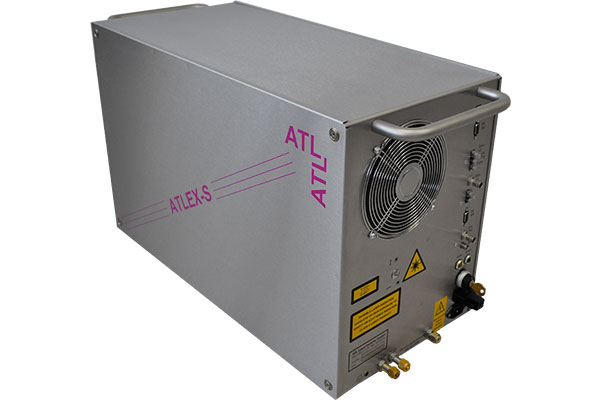

ATLEX S Side

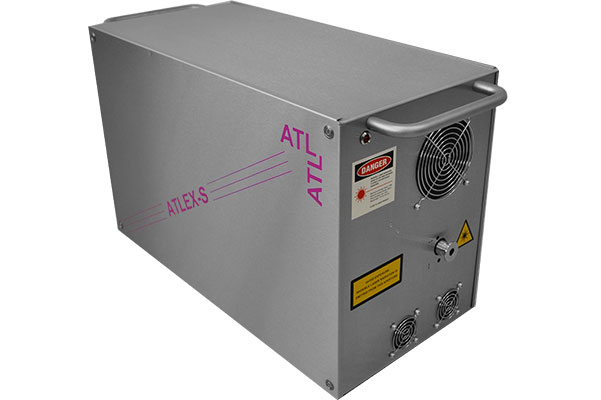

ATLEX S Side 2

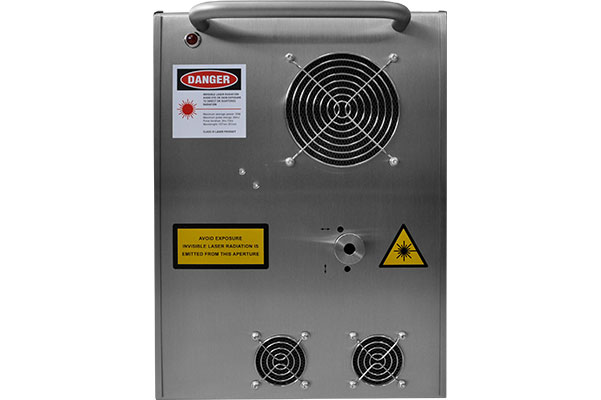

ATLEXS Front

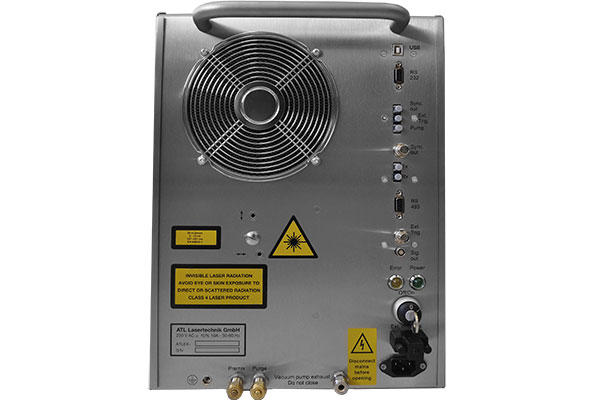

ATLEX S Rear

ATLEX-S main features:

  • Ultra compact size
  • Soft corona preionization
  • HV-solid state pulser
  • Laser head volume < 3l
  • TMC (Total-Metal-Ceramic) Vessel
  • Integrated vacuum pump & halogen filter
  • Totally air-cooled, active thermal management
  • RS-485, RS232, USB and fiber optic Interface for system integration
  • Flushable optics holder
  • Energy stabilization mode
  • Dynamic fan speed controls
  • Meets European CE-standard
  • RoHS compliance

Details

Applications

  • Medicine (refractive surgery)
  • Spectroscopy
  • Micromachining
  • Testing and measurement
Date
  • 30th April 2015


ATLEX-S Specifications
Gas Medium
 ArF KrF Units
Wavelength
 193 248 nm
High Voltage Switching Technique
 Solid State Switch Solid State Switch
Max. Rep. Rate
 300 500 300 500 Hz
Max. Pulse Energy 1
 10 10 15 15 mJ
Max. Average Power
  2,4
  4
  4
 6
  W
Pulse Duration 2
 5 – 8 ns
Beam Dimensions 2 (V x H)
 4 x 6 mm
Beam Divergence 2 (V x H)
 1 x 2 mrad
Energy Stability (standard deviation)
 < 3 %
Dimensions (LxWxH) click here for details
 630 x 400 x 300 mm
Weight
 65 kg
Cooling
 Air
Power requirement
 230 VAC / 6,3 A / 1 phase / 50-60 Hz

All specifications are typical data and subject to change without notice due to product improvements.

1 Measured at low rep.rates; allow 10% reduction of output energy and power for laser equipped with stabilization mode.
2 Typical value, FWHM
