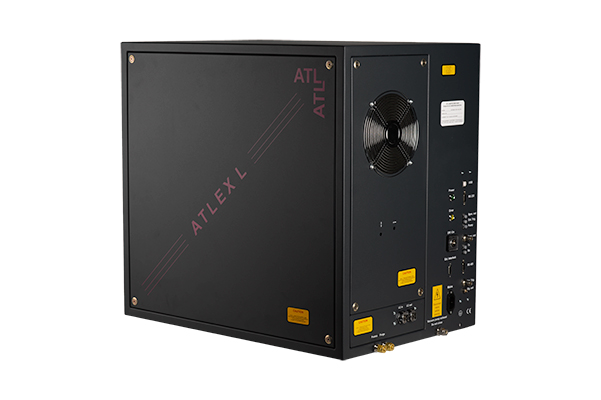

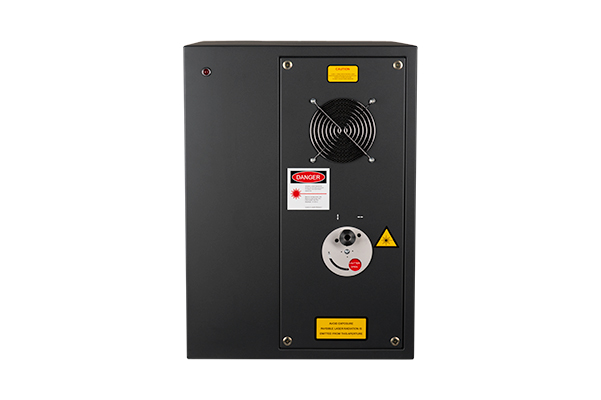

ATLEX-L
New industrial excimer lasers
ATLEX-L main features:
- TMC (Total-Metal-Ceramic) Vessel
- Corona Preionization
- Solid state switch
- Extended Dynamic & Static Gas-Lifetime (Several Months)
- Laser Head Volume 6 l
- Air Cooled / Optional Liquid Cooled
- RS-485, RS232, USB and fiber optic Interface for system integration
- Flushable optics holder
- Integrated 4-Valve System for Easy Gas Handling
- Dynamic fan speed controls
- Meets European CE-standard, RoHS compliant
- Modular Design / Service Friendly
Details
Datasheet
|
ATLEX-L Specifications
|
|||
|
Gas Medium
|
ArF | KrF | Units |
|
Wavelength
|
193 | 248 | nm |
|
High Voltage Switching Technique
|
Solid State Switch | ||
|
Maximum Pulse Energy 1
|
8 | 15 | mJ |
| Stabilized Pulse Energy | 4 | 8 | mJ |
|
Stabilized Average Power
ATLEX-500-L ATLEX-1000-L |
2 4 |
4 8 |
W W |
|
Max. Rep Rate
ATLEX-500-L ATLEX-1000-L |
500 1000 |
Hz Hz |
|
|
Pulse Duration 2
|
5 – 8 | ns | |
|
Beam Dimensions 2 (V x H)
|
6 x 4 | mm | |
|
Beam Divergence 2 (V x H)
|
2 x 1 | mrad | |
|
Energy Stability (standard deviation)
|
< 2 | % | |
|
Dimensions (LxWxH)
|
600 x 415 x 572 | mm | |
|
Weight
|
70 | kg | |
|
Cooling
|
Air / Liquid | ||
|
Power requirements
|
230 VAC / 10 A / 1 Phase / 50-60 Hz | ||
|
All specifications are typical data and subject to change without notice due to product improvements. 1 Measured at 20Hz; allow 10% reduction of output energy and power for laser equipped with stabilization mode. |
|
Other wavelengths upon request. |
